Using Colour
=======
“avoiding catastrophe becomes the first principle in bringing color to information: Above all, do no harm.”
Envisioning Information, Edward Tufte, Graphics Press, 1990
=======
Using Colour
-
Physics of colour
-
Practicalities of colour
-
Accessibiilty of colour
=======
1. Physics of Colour
Colour is ‘visible light’
=======
Describing colour:

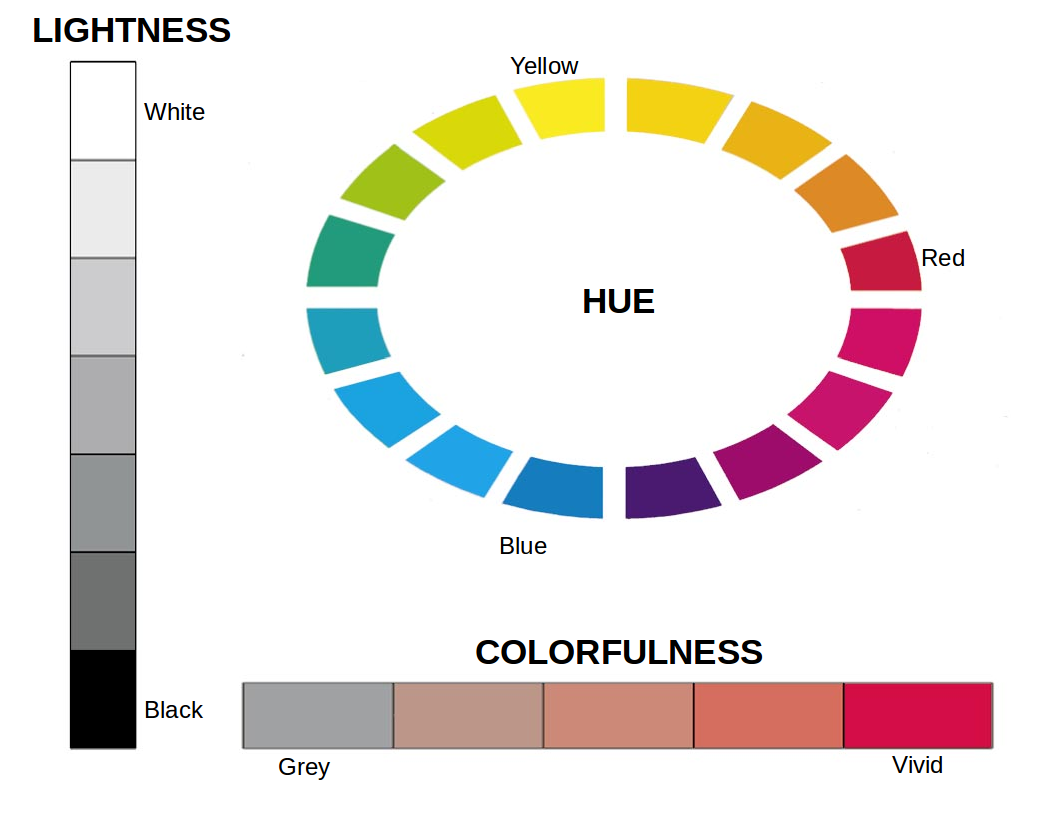

i. Hue, lightness, and colorfulness

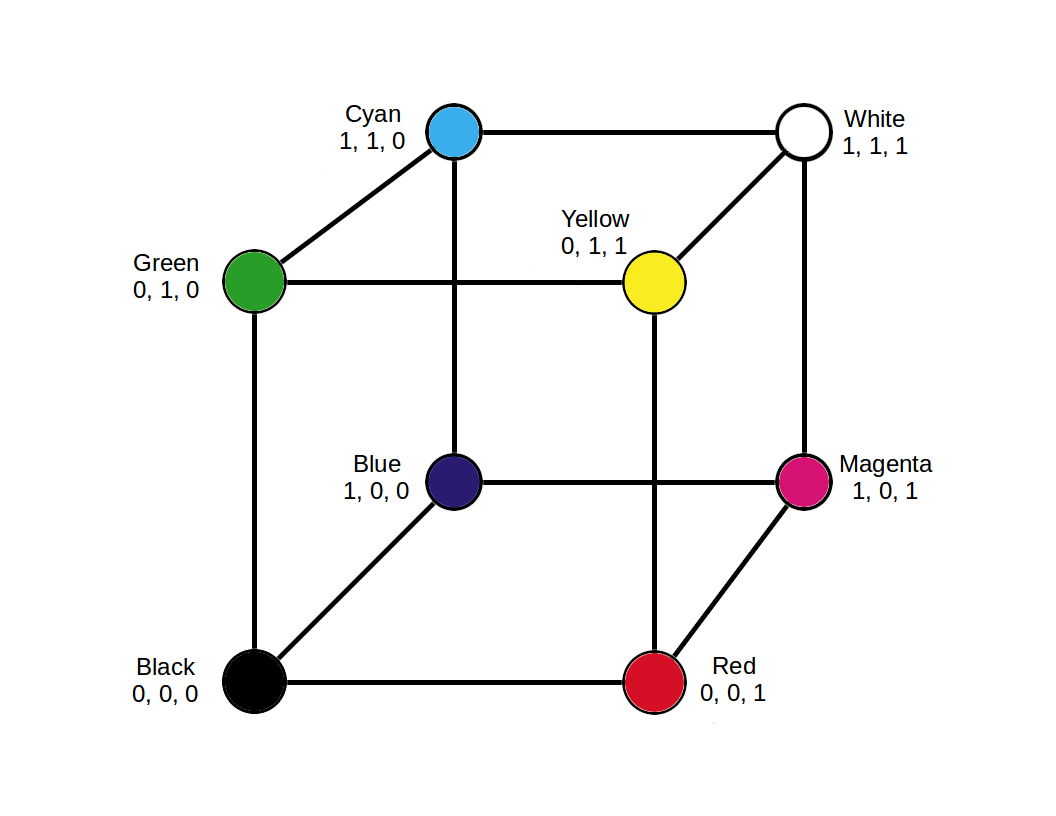

ii. RGB
Background matters:

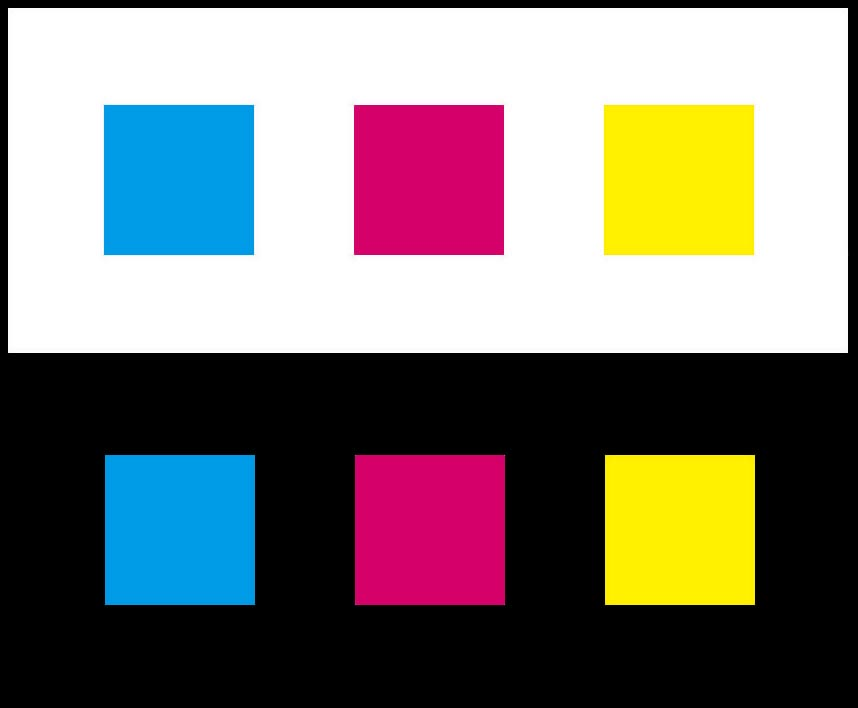

Colors look darker and smaller against white and lighter and larger against black.
Use a consistent background colour
-
Avoid gradients of colour
-
Avoid any other variation in background colour

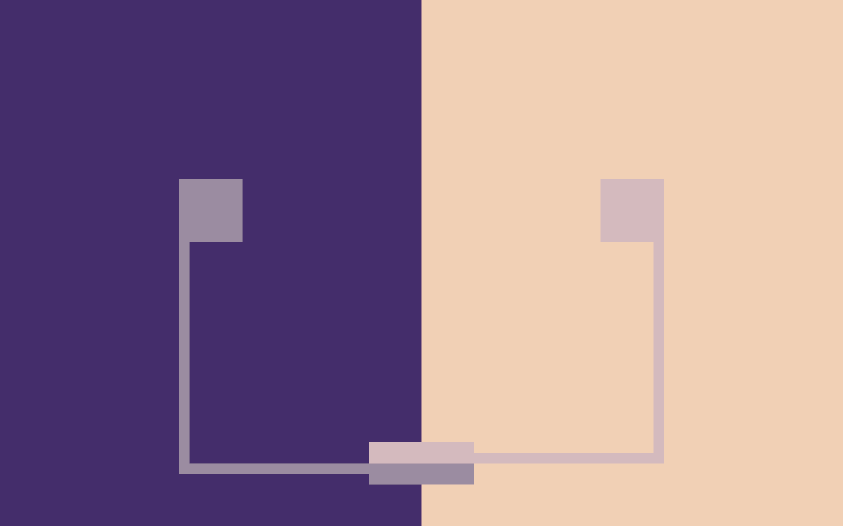

Simultaneous contrast can make the same colors look different

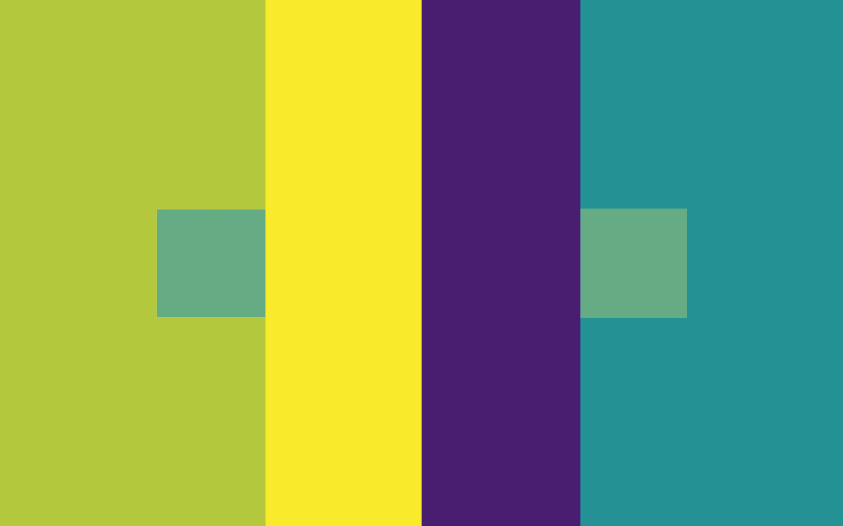

Simultaneous contrast can make different colors look the same
Ensure background contrasts with text and data colours
-
Light (e.g., white) and low colourfulness colours (pale greys, creams, etc).
-
If using colours to highlight text (e.g., heatmaps) ensure enough contrast.
=======
2. Practicalities of Colour
Use color to communicate information

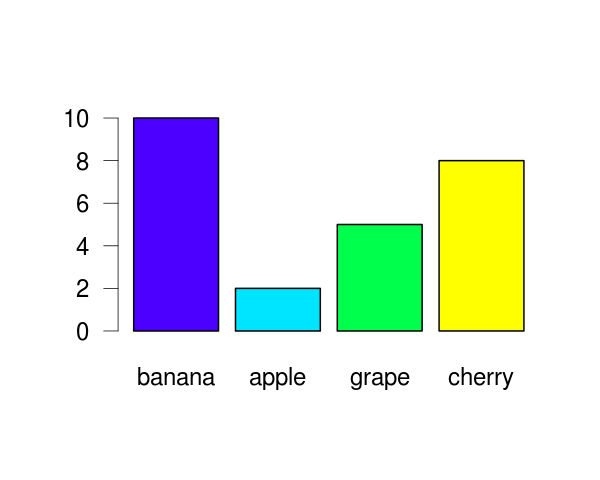

Colour !- decoration / wallpaper.

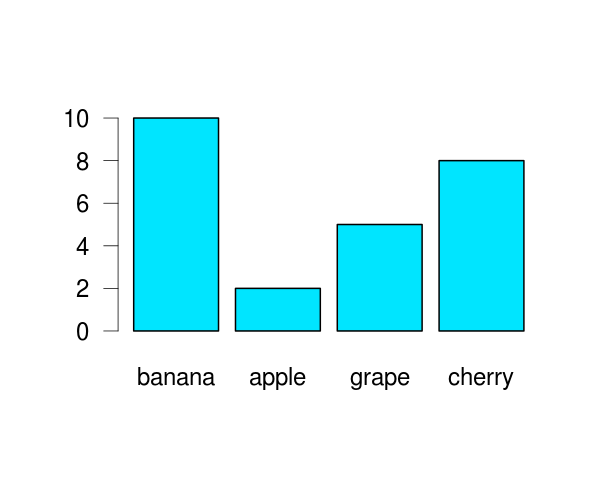

Different colors should correspond to different meanings
=======
Three main uses of colour to promote communication:
• To highlight particular data
• To group items (categories)
• To encode quantitative values (sequential or diverging)
i. Use soft, natural colors to display most information and bright and/or dark colors to highlight information

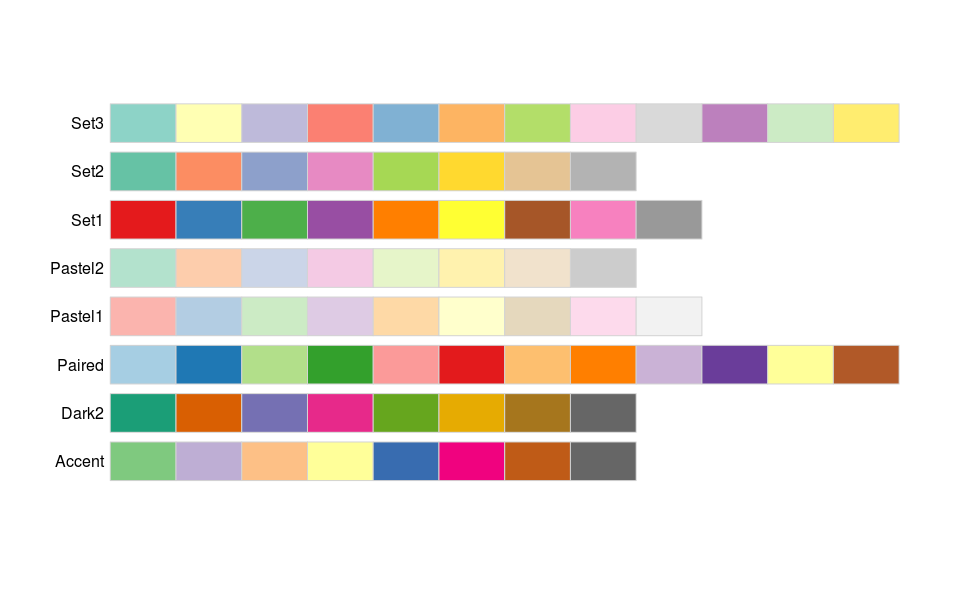

ii. Use colours of the same hue to group/categorise data

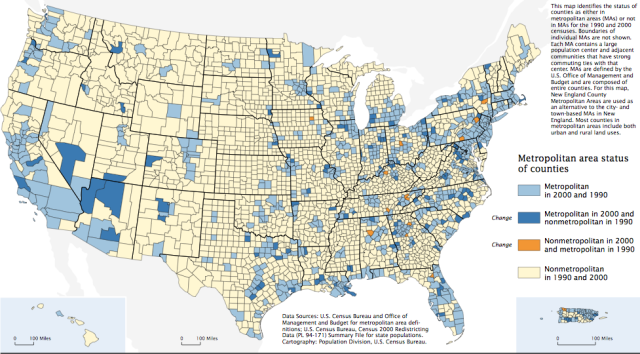

Fig A example categorical map from the US census of 2000.
iii. Use colours of increasing/decreasing brightness or colorfulness to illustrate quantitative data

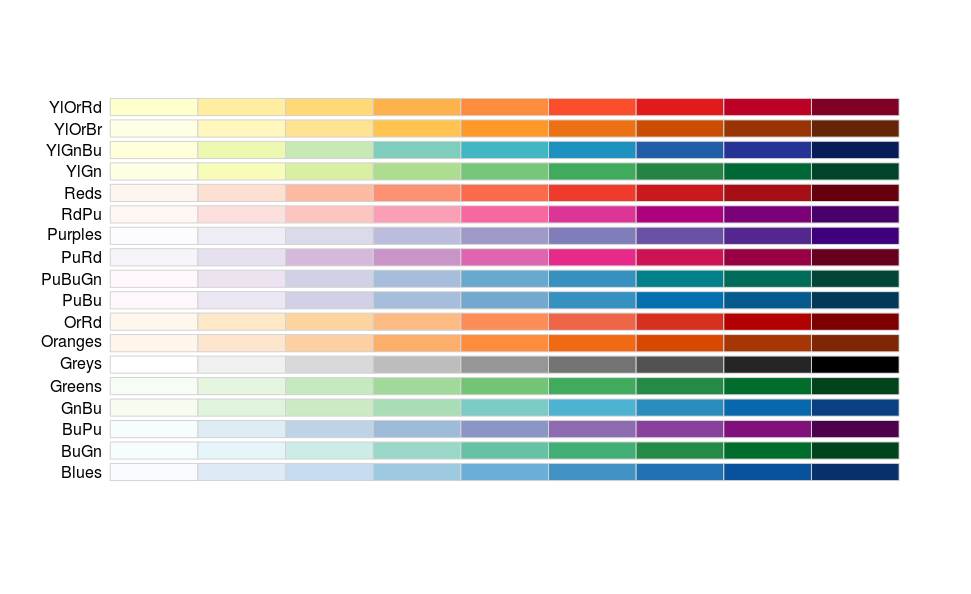

Sequential

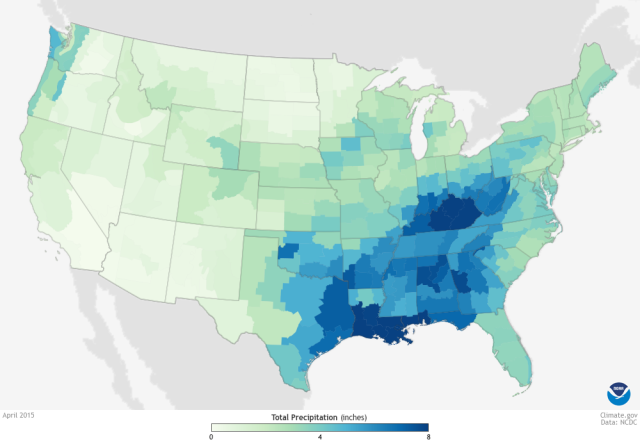

Fig. A map of precipitation with a sequential lightness-hue ramp from climate.gov.
iv. Use colours of increasing/decreasing brightness or colorfulness to illustrate quantitative data

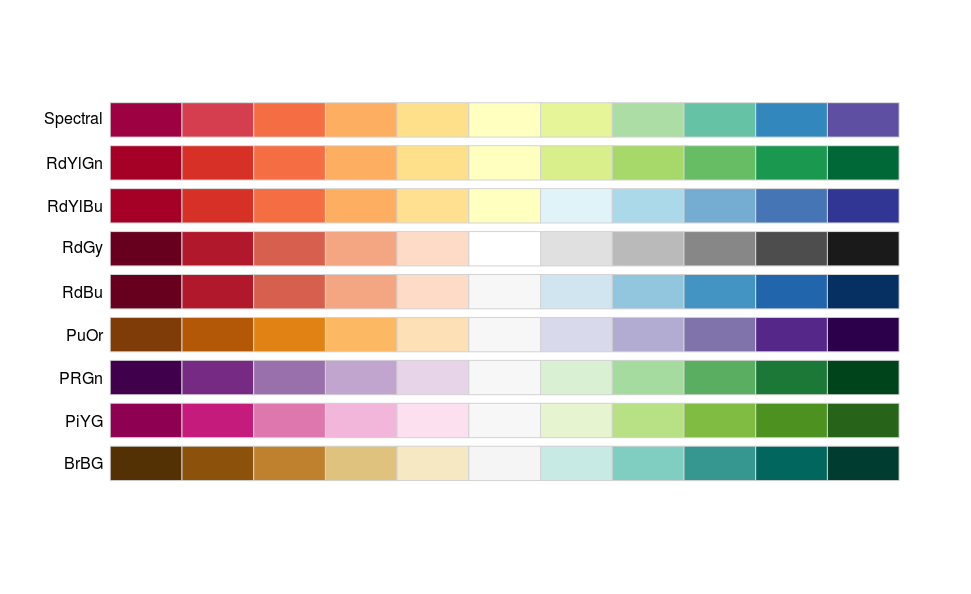

Diverging

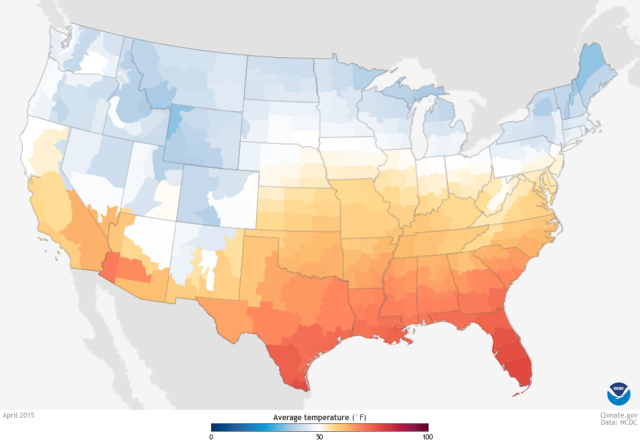

Fig A map of temperature anomaly form climate.gov.
v. Use light colours for non-data components
| Component | Default Color |
|---|---|
| Axis lines | Thin gray lines of medium intensity. |
| Borders | If needed, thin gray lines of medium intensity. |
| Background | Use white or ‘None’ |
Some suggestions for data components of graphs
-
Use distincts hue of medium intensity for each data series.
-
For small data points or thin lines, use distinct hue of high intensity.
-
For larger data points or wider lines, use distinct hues of medium intensity.
=======
3. Accessibility of Colour

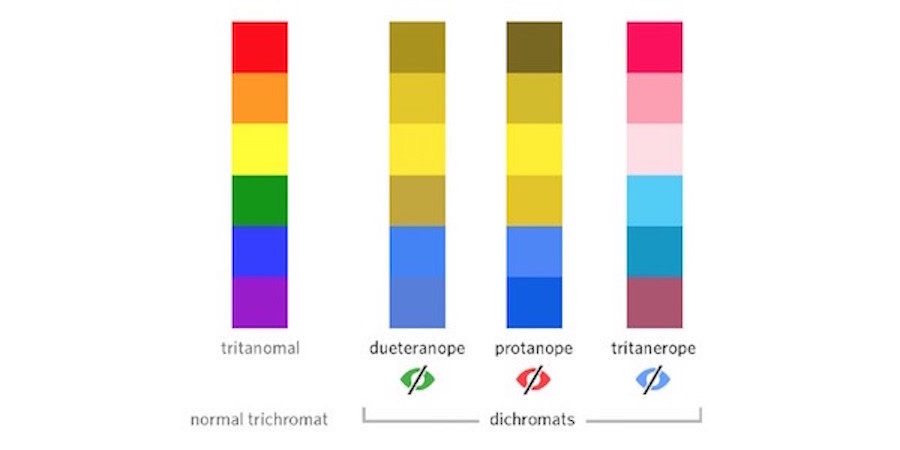

Red-green colourblindness affects:
-
about 8% of the male population and
-
0.5% of the female population
Recommendations:
i. Use colour and symbols
ii. Keep colours minimal
iii. Avoid problem colour combinations
See: http://blog.usabilla.com/how-to-design-for-color-blindness/
=======

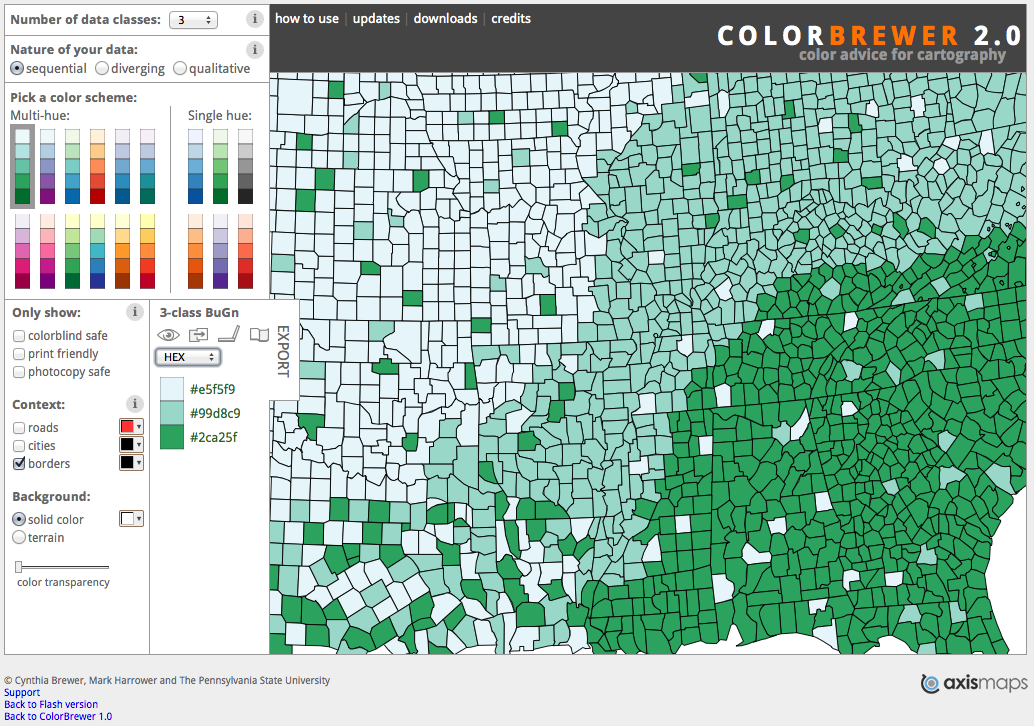

Use colorbrewer to help with everything!
=======
References
Few, S. 2008. Practical Rules for Using Color in Charts
MacDonald, L.W. 1999. Using Color Effectively in Computer Graphics
https://betterfigures.org/2015/06/23/picking-a-colour-scale-for-scientific-graphics/
