We use the following methods to test whether samples are drawn from populations with different means, or test whether one sample is drawn from a population with a mean different from some theoretical mean.
Response: Integer or continuous
Predictor/s: Categorical
One sample of continuous data: Compare to a known value, hist()
, mean()
, sd()
, t.test()
Two samples of continuous data from two groups: T-test, t.test()
Samples of continuous data from more than two groups and/or two predictors: ANOVA, aov()
, lm()
We can continue to use the small bird data…
BirdData <- data.frame(
Tarsus = c(22.3, 19.7, 20.8, 20.3, 20.8, 21.5, 20.6, 21.5),
Head = c(31.2, 30.4, 30.6, 30.3, 30.3, 30.8, 32.5, 31.6),
Weight = c(9.5, 13.8, 14.8, 15.2, 15.5, 15.6, 15.6, 15.7),
Wingcrd = c(59, 55, 53.5, 55, 52.5, 57.5, 53, 55),
Species = c('A', 'A', 'A', 'A', 'A', 'B', 'B', 'B')
)

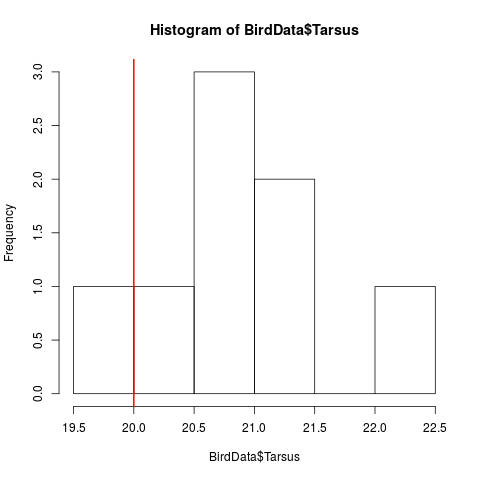

To display these data, we can use a histogram (good for one sample), barplot (ok …), or boxplot (better …), or a dotplot (even better …), or a combined dot-boxplot or overlapping histograms (the best!).
hist(BirdData$Tarsus)
abline(v = 20, lwd = 2, col = 'red')
t.test(x = , mu = )
First, we can test whether one sample is drawn from a population with a mean different from a theoretical mean, using a one-sample t-test.
The one-sample t-test asks whether our data are drawn from a population whose true mean is some value we specify.
In this case, we can ask whether the sparrow’s tarsus data is drawn from a population that has a mean (mu =
) of 20.
t.test(BirdData$Tarsus, mu = 20)
##
## One Sample t-test
##
## data: BirdData$Tarsus
## t = 3.2786, df = 7, p-value = 0.01351
## alternative hypothesis: true mean is not equal to 20
## 95 percent confidence interval:
## 20.26135 21.61365
## sample estimates:
## mean of x
## 20.9375
The p = 0.01351
suggests that our sparrows are different.
par(mfrow = c(1, 4), cex = 1.25)
barplot( tapply(BirdData$Tarsus, BirdData$Species, mean))
boxplot(BirdData$Tarsus ~ BirdData$Species)
dotchart(BirdData$Tarsus, BirdData$Species)
boxplot(BirdData$Tarsus ~ BirdData$Species)
points(x = jitter(as.numeric(BirdData$Species)), y = BirdData$Tarsus)
t.test(x = , y = )
Two compare the means of two samples that were taken independently, we can use t.test()
. By default, R assumes that variances are not equal, and adjusts for this by running a Welch t-test.
t.test(x = BirdData$Tarsus[BirdData$Species == 'A'],
y = BirdData$Tarsus[BirdData$Species == 'B'])
##
## Welch Two Sample t-test
##
## data: BirdData$Tarsus[BirdData$Species == "A"] and BirdData$Tarsus[BirdData$Species == "B"]
## t = -0.80033, df = 5.9988, p-value = 0.454
## alternative hypothesis: true difference in means is not equal to 0
## 95 percent confidence interval:
## -1.7041641 0.8641641
## sample estimates:
## mean of x mean of y
## 20.78 21.20
Species A and B have similar tarsus lengths.
To run the Student’s t-test, that does assume equal variance, set var.equal = TRUE
.
t.test(x = BirdData$Tarsus[BirdData$Species == 'A'],
y = BirdData$Tarsus[BirdData$Species == 'B'],
var.equal = TRUE)
##
## Two Sample t-test
##
## data: BirdData$Tarsus[BirdData$Species == "A"] and BirdData$Tarsus[BirdData$Species == "B"]
## t = -0.68349, df = 6, p-value = 0.5198
## alternative hypothesis: true difference in means is not equal to 0
## 95 percent confidence interval:
## -1.923607 1.083607
## sample estimates:
## mean of x mean of y
## 20.78 21.20
t.test(x = , y = , paired = TRUE)
If we have observations before and after a treatment, or of two matched subjects with different treatments, we can run a paired t-test. R relies on the relative position to determine the pairing, so make sure that this is correct.
Pairing the data gives us more statistical power, because random inbetween subject variation has been eliminated. But, we lose degrees of freedom because each pair is now the test unit, rather than the individual.
before <- c(20, 15, 10, 5, 20, 15, 10, 5, 20, 15, 10, 5, 20, 15, 10, 5)
after <- c(23, 16, 10, 4, 22, 15, 12, 7, 21, 16, 11, 5, 22, 14, 10, 6)
t.test(before, after)
##
## Welch Two Sample t-test
##
## data: before and after
## t = -0.40876, df = 29.755, p-value = 0.6856
## alternative hypothesis: true difference in means is not equal to 0
## 95 percent confidence interval:
## -5.248256 3.498256
## sample estimates:
## mean of x mean of y
## 12.500 13.375
t.test(before, after, paired = TRUE)
##
## Paired t-test
##
## data: before and after
## t = -3.0502, df = 15, p-value = 0.0081
## alternative hypothesis: true difference in means is not equal to 0
## 95 percent confidence interval:
## -1.4864388 -0.2635612
## sample estimates:
## mean of the differences
## -0.875
In the above cases, we have specified x
and y
. Depending how you have your data organised, a formula can also be used.
The paired t-test is equivalent to testing whether difference between each pair of observations has a population mean of 0.
t.test(x = before - after, mu = 0, var.equal = TRUE)
##
## One Sample t-test
##
## data: before - after
## t = -3.0502, df = 15, p-value = 0.0081
## alternative hypothesis: true mean is not equal to 0
## 95 percent confidence interval:
## -1.4864388 -0.2635612
## sample estimates:
## mean of x
## -0.875
The t-test assumes that the data for each group or sample follow a normal distribution and were sampled independently from the two populations. The Student’s t-test assume equal variances, but is robust if sample sizes are equal; Welch’s t-test is robust to unequal variance even if sample sizes are different.
wilcox.test()
As with t.test()
, the wilcox.test()
function can be modified for one or two samples, paired or unpaired.
For independent (unpaired) samples, it is called the Mann-Whitney U test. For paired samples, it is known as the Wilcoxon signed-rank test.
wilcox.test(x = BirdData$Tarsus[BirdData$Species == 'A'],
y = BirdData$Tarsus[BirdData$Species == 'B'])
## Warning in wilcox.test.default(x = BirdData$Tarsus[BirdData$Species ==
## "A"], : cannot compute exact p-value with ties
##
## Wilcoxon rank sum test with continuity correction
##
## data: BirdData$Tarsus[BirdData$Species == "A"] and BirdData$Tarsus[BirdData$Species == "B"]
## W = 5, p-value = 0.5462
## alternative hypothesis: true location shift is not equal to 0
In its simplest form, ANOVA is a statistical test of whether or not the means of several groups are equal, and therefore generalizes the t-test to more than two groups. It is akin to running multiple two-sample t-tests.
ANOVA has the following assumptions.
Independence of observations,
Normality - the distributions of the residuals are normal,
Equality (or “homogeneity”) of variances (called homoscedasticity) - the variance of data in groups should be the same.
aov()
One-way analysis of variance (ANOVA) is used to determine whether there are any statistically significant differences between the means of three or more independent (unrelated) groups.
It tests the null hypothesis that the means of all groups are equal. Details of the specifics of ANOVA are described here
If it returns a statistically significant result, we accept the alternative hypothesis: At least two group means are statistically significantly different from each other.
However, ANOVA cannot tell you which specific group/s is significantly different from which other. To determine this, a post-hoc test must be carried out.
We will illustrate this using the sparrow data set.
dat <- read.table(file = "http://www.simonqueenborough.info/R/data/sparrows.txt", header = TRUE)
We want to make sure that the observers who collected the data were not biased in any way, i.e., there was no observer that consistently measured low or high. If sparrows were assigned at random to observers, we would not expect any difference between the observers in the sparrow measurements.
We can test this question with a one-way ANOVA.
First, it will make our lives a tiny bit easier to convert Observer to a factor.
dat$fObserver <- as.factor(dat$Observer)
Then, we can plot the data (two different ways, of course!).
par(mfrow = c(1, 2), lwd = 2, las = 1)
# 1. First a boxplot
boxplot(dat$Tarsus ~ dat$fObserver,
xlab = 'Observer')
# 2. Then, a barplot:
## use tapply() to get means and sd
MeanTarsus <- tapply(dat$Tarsus, dat$fObserver, mean)
SDTarsus <- tapply(dat$Tarsus, dat$fObserver, sd)
## calculate mid-points of bars, to plot error bars
MidPoints <- barplot(MeanTarsus, plot = FALSE)
barplot(MeanTarsus, ylim = c(0, 30),
xlab = 'Observer')
segments(x0 = MidPoints, x1 = MidPoints,
y0 = MeanTarsus + SDTarsus, y1 = MeanTarsus - SDTarsus)
Differences in Tarsus length measured by different Observers
The function aov()
runs the ANOVA model. We need to provide a formula =
argument, and can also give a data =
.
m_obs <- aov(Tarsus ~ fObserver, data = dat)
summary(m_obs)
## Df Sum Sq Mean Sq F value Pr(>F)
## fObserver 6 19.1 3.181 3.793 0.000966 ***
## Residuals 972 815.3 0.839
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
The p = 0.000966 tells us that there are significant differences among observers. We will need to do a post-hoc test to identify which ones (see below).
In reality, aov()
is a wrapper to lm()
(i.e., the function aov calls the function lm) for fitting linear models
to balanced or unbalanced experimental designs. The main difference from lm()
is in the way print()
, summary()
and so on handle the fit: this is expressed in the traditional language of the analysis of variance
rather than that of linear models. This also means that it is easy to include both categorical and
continuous variables as predictors in a model (we will come to this later).
Note: aov()
is designed for balanced designs, and the results can be hard to interpret without balance:
beware that missing values in the response(s) will likely lose the balance.
If the data do not meet the assumptions of a parametric ANOVA, we can use a non-parametric alternative. In this case, the Kruskal-Wallis Test, or one-way ANOVA on ranks. It extends the Mann-Whitney U Test to more than two groups.
kruskal.test(Tarsus ~ fObserver, data = dat)
##
## Kruskal-Wallis rank sum test
##
## data: Tarsus by fObserver
## Kruskal-Wallis chi-squared = 38.875, df = 6, p-value = 7.574e-07
aov()
A two-way ANOVA models the response as a function of two categorical variables, and can also include an interaction between them. (So that we keep using the same sparrow data, we will look at how Tarsus length varies between the different species and sexes, although there are only two levels of each).
First, we run the simple additive model. This model is testing for differences between species and between the sexes pooled over species.
m_additive <- aov(Tarsus ~ Species + Sex, data = dat)
summary(m_additive)
## Df Sum Sq Mean Sq F value Pr(>F)
## Species 1 391.7 391.7 1022.2 <2e-16 ***
## Sex 1 68.8 68.8 179.5 <2e-16 ***
## Residuals 976 374.0 0.4
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
P < 0.05 for both Species and Sex, suggesting that tarsus length differs significantly in both.
To test whether the differences between the sexes are different in each species
(i.e., is there an interaction between sex and species), we modify the model with *
.
m_interaction <- aov(Tarsus ~ Species * Sex, data = dat)
summary(m_interaction)
## Df Sum Sq Mean Sq F value Pr(>F)
## Species 1 391.7 391.7 1021.912 <2e-16 ***
## Sex 1 68.8 68.8 179.492 <2e-16 ***
## Species:Sex 1 0.3 0.3 0.709 0.4
## Residuals 975 373.7 0.4
## ---
## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
Here, P = 0.4, suggesting that the difference in Tarsus length between males and females does not vary between the species.
A more detailed calculation of ANOVA in R is provided here
To compare the significant difference across all the group means Tukeys Honest Significant Differences test is often used. Tukey’s test is essentially a t-test, except that it corrects for the fact that you are making multiple comparisons (when making multiple comparisons, the chance of making a Type I error—a false positive—increases). Tukey’s test corrects for that, so is more suitable single test for multiple comparisons than a running multiple t-tests.
First, we look at the one-way ANOVA, differences between observers.
posthoc <- TukeyHSD(m_obs)
posthoc
## Tukey multiple comparisons of means
## 95% family-wise confidence level
##
## Fit: aov(formula = Tarsus ~ fObserver, data = dat)
##
## $fObserver
## diff lwr upr p adj
## 3-2 0.266804979 0.03220683 0.50140313 0.0141868
## 4-2 0.009638554 -0.32632698 0.34560409 1.0000000
## 5-2 0.133333333 -0.29952798 0.56619464 0.9710133
## 6-2 -0.068831169 -0.33753254 0.19987020 0.9887784
## 7-2 0.346000000 -0.06763922 0.75963922 0.1709119
## 8-2 -0.029357798 -0.33239207 0.27367647 0.9999552
## 4-3 -0.257166425 -0.60155215 0.08721930 0.2929550
## 5-3 -0.133471646 -0.57290036 0.30595707 0.9729768
## 6-3 -0.335636148 -0.61479401 -0.05647829 0.0073020
## 7-3 0.079195021 -0.34131192 0.49970196 0.9979097
## 8-3 -0.296162777 -0.60850626 0.01618071 0.0762933
## 5-4 0.123694779 -0.37723849 0.62462805 0.9907668
## 6-4 -0.078469723 -0.44693364 0.28999419 0.9958615
## 7-4 0.336361446 -0.14805845 0.82078134 0.3828507
## 8-4 -0.038996352 -0.43319808 0.35520537 0.9999493
## 6-5 -0.202164502 -0.66070756 0.25637855 0.8508450
## 7-5 0.212666667 -0.34335375 0.76868709 0.9188436
## 8-5 -0.162691131 -0.64216071 0.31677844 0.9534703
## 7-6 0.414831169 -0.02561204 0.85527438 0.0801807
## 8-6 0.039473371 -0.29923386 0.37818060 0.9998674
## 8-7 -0.375357798 -0.83754776 0.08683216 0.1997785
Here, looking down the list of P values, only two comparisons are significant: 3-2 and 6-3.
Then, the two-way ANOVA.
posthoc <- TukeyHSD(m_additive)
posthoc
## Tukey multiple comparisons of means
## 95% family-wise confidence level
##
## Fit: aov(formula = Tarsus ~ Species + Sex, data = dat)
##
## $Species
## diff lwr upr p adj
## SSTS-SESP -1.942702 -2.061942 -1.823462 0
##
## $Sex
## diff lwr upr p adj
## Male-Female 0.5802367 0.4951247 0.6653487 0
Crawley, M. The R Book. Ch.8 Classical Tests
Crawley, M. The R Book. Ch.11 Analysis of Variance
