The Split-Apply-Combine Strategy for Data Analysis

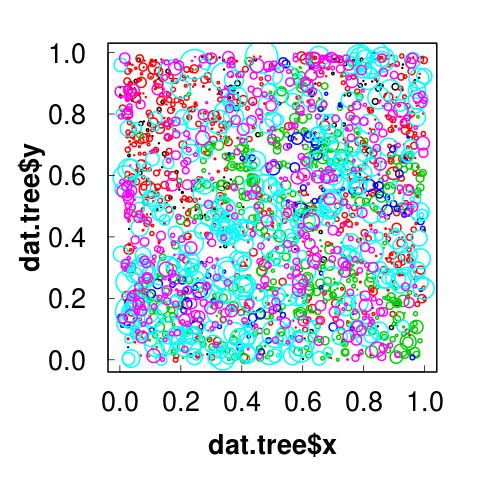

Figure 1. A map of tree locations in a 1-ha plot. Each circle represents a stem, color indicates species, the size corresponds to the DBH, x- and y-axes are the position.

Here are the data:

head(dat_tree)

#      x     y  species  dbh status
# 1 0.078 0.091 blackoak 0.85      1
# 2 0.076 0.266 blackoak 0.90      1
# 3 0.051 0.225 blackoak 1.11      1
# 4 0.015 0.366 blackoak 0.18      0
# 5 0.030 0.426 blackoak 0.32      1
# 6 0.102 0.474 blackoak 0.11      1

str(dat_tree)
# 'data.frame':	2251 obs. of  5 variables:
#  $ x      : num  0.078 0.076 0.051 0.015 0.03 0.102 ...
#  $ y      : num  0.091 0.266 0.225 0.366 0.426 0.474 ...
#  $ species : Factor w/ 6 levels "blackoak","hickory",..: 1 ...
#  $ dbh    : num  0.85 0.9 1.11 0.18 0.32 ...
#  $ status  : int  1 1 1 0 1 1 1 0 1 1 ...

Problem: How to calculate mean tree DBH per species?

We can split the dataset up into chunks of rows based on species, and calculate mean DBH for each group.

This is an example of the split-apply-combine approach to data analysis.

Split-apply-combine is a common data analysis pattern

Split: Break a big problem into manageable pieces

Apply: operate on each piece independently

Combine: stick pieces back together

Examples of split-apply-combine

Data preparation

• group-wise ranking
• standardization
• normalization
• creating new variables on a per-group basis

Summaries for display or analysis

• checking sample sizes of groups
• calculating marginal means
• conditioning table of counts by groups

Modelling

• fitting separate models for groups (= panel)

With your current knowledge, we could do the following:

Solution 1: Subset data for each species at a time

# subset out blackoak
bo <-  dat_tree[dat_tree$species == "blackoak", ]

head(bo)
# x     y  species  dbh status
# 1   0.078 0.091 blackoak 0.85      1
# 2   0.076 0.266 blackoak 0.90      1
# 3   0.051 0.225 blackoak 1.11      1
# 4   0.015 0.366 blackoak 0.18      0
# 5   0.030 0.426 blackoak 0.32      1
# 6   0.102 0.474 blackoak 0.11      1

mean(bo$dbh)
# [1] 1.258519

But, given that we are repeating many of the same steps, this is both tedious and time-consuming, and also increases the chance of errors creeping in to our code.

Solution 2: The *apply group of functions

R has several handy-dandy functions that do this process of splitting the dataset into chunks, applying a calculation, and combining the answers together again.

Equivalents in other software: Excel pivot tables, APL’s array operators, SQL ‘group by operator’.

The *apply group of functions

Calculate over all/subsets of columns or rows

tapply()

Works on: vectors and factors (usually in a dataframe)

For when you want to apply a function to subsets of a vector and the subsets are defined by some other vector, usually a factor

tapply() has three main arguments.

• X: the column of numeric data,

• INDEX: one or more factors,

• FUN: the function to be applied.

tapply(X = dat_tree$dbh, INDEX = dat_tree$species, FUN = mean)

blackoak  hickory    maple     misc   redoak whiteoak
1.258519 2.124154 3.025350 3.394286 9.991156 3.837098

Any arguments to the function can be included.

tapply(dat_tree$dbh, dat_tree$species, mean, na.rm = TRUE)

blackoak  hickory    maple     misc   redoak whiteoak
1.258519 2.124154 3.025350 3.394286 9.991156 3.837098

You can split the dataframe according to any number of columns, by putting them inside a list.

tapply(dat_tree$dbh, list(dat_tree$species, dat_tree$status), mean)

                 0        1
blackoak  1.217500 1.265652
hickory   2.339538 2.102210
maple     3.148750 3.010262
misc      4.347500 3.315670
redoak   10.002000 9.989739
whiteoak  3.648913 3.858632

apply()

Works on: matrix, array.

When you want to apply a function to the rows or columns of a matrix (and higher-dimensional analogues).

apply() has three main arguments.

• X: an array or matrix,

• MARGIN: a vector where 1 indicates rows, 2 indicates columns, and c(1, 2) indicates rows and columns,

• FUN: the function to be applied.

# Two dimensional matrix
M <- matrix(seq(1,16), 4, 4)

M
     [,1] [,2] [,3] [,4]
[1,]    1    5    9   13
[2,]    2    6   10   14
[3,]    3    7   11   15
[4,]    4    8   12   16

# apply min to rows
apply(M, 1, min)
[1] 1 2 3 4

# apply max to columns
apply(M, 2, max)
[1]  4  8 12 16

Not generally advisable for data frames as it will coerce to a matrix first.

If you want row/column means or sums for a 2D matrix, look at highly optimized, lightning-quick colMeans(), rowMeans(), colSums(), rowSums()

lapply()

Works on: lists (incl. dataframes)

When you want to apply a function to each element of a list in turn and get a list back.

lapply() has two main arguments.

• X: a vector (atomic or list),

• FUN: the function to be applied to each element of X.

x <- list(a = 1, b = 1:3, c = 10:100)

x
$a
[1] 1

$b
[1] 1 2 3

$c
 [1]  10  11  12  13  14  15  ... 100


lapply(x, FUN = length)
$a
[1] 1
$b
[1] 3
$c
[1] 91

lapply(x, FUN = sum)
$a
[1] 1
$b
[1] 6
$c
[1] 5005

sapply()

Works on: lists

When you want to apply a function to each element of a list in turn, but you want a vector back, rather than a list.

sapply() has two main arguments.

• X: a vector (atomic or list),

• FUN: the function to be applied to each element of X.

x <- list(a = 1, b = 1:3, c = 10:100)

# Compare with above; a named vector, not a list
sapply(x, FUN = length)
a  b  c
1  3 91

sapply(x, FUN = sum)
a    b    c
1    6 5005

# lapply:
lapply(x, FUN = sum)
$a
[1] 1
$b
[1] 6
$c
[1] 5005

# sapply:

sapply(x, FUN = sum)
a    b    c
1    6 5005

Other resources

Crawley, M. The R Book. Ch. 6 Tables.

https://nsaunders.wordpress.com/2010/08/20/a-brief-introduction-to-apply-in-r/

https://stackoverflow.com/questions/3505701/grouping-functions-tapply-by-aggregate-and-the-apply-family

https://www.slideshare.net/hadley/plyr-one-data-analytic-strategy
